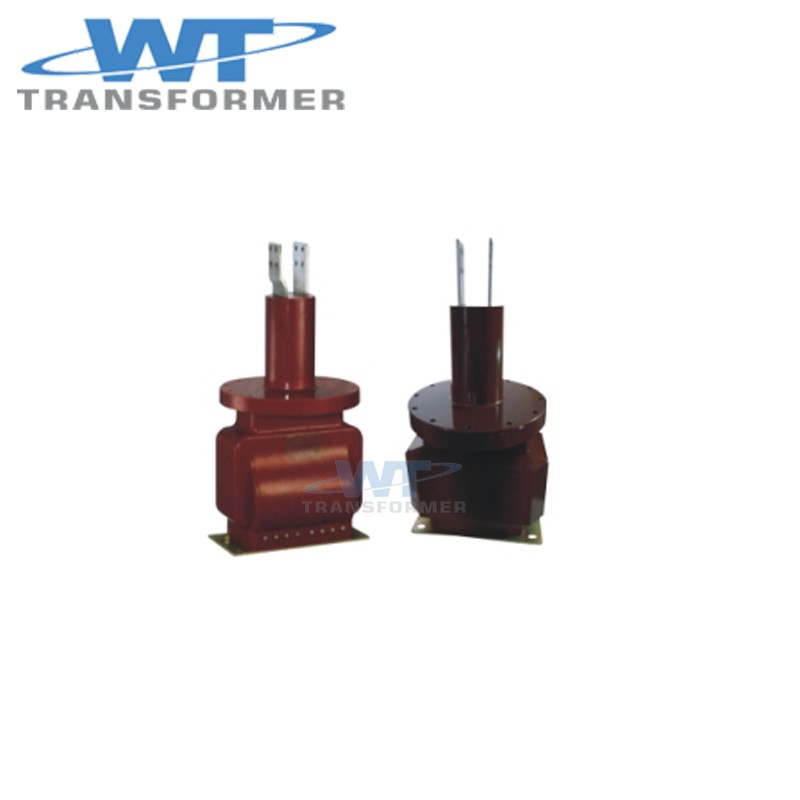

IEEE Current Transformer LZZBJ4-35A/35B

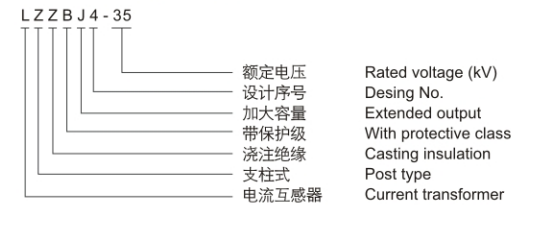

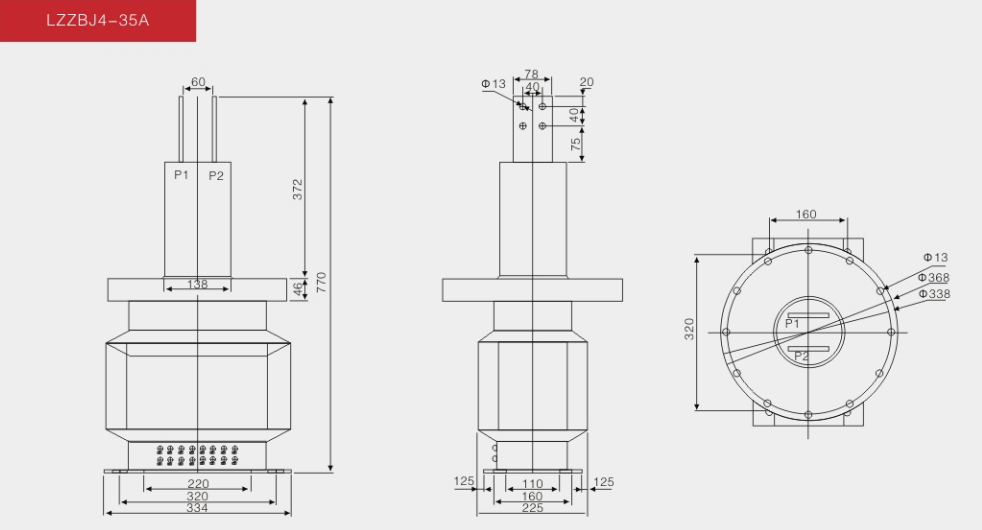

Type designation

Technical data

								Single transformation ratio
Rated primary current(A)	Accuracy classes combination	Rated secondary output(VA)					1s thermal current(kA)	Rated dynamic current(kA)
		0.2	0.5	10P10	10P15	5P20
50-200	0.2/0.2/10P/10P 0.2/0.5/10P/10P 0.2/10P/10P/10P 0.5/10P/10P/10P 10P/10P/10P/10P	20	40	50	40	30	120lin	300lin
300-400							100lin	250lin
500-800							50	100
1000-1250							56	110
1500、1600							75	110
								Two transformation ratio
Rated primary current(A)	Accuracy classes combination	Rated secondary output(VA)					1s thermal current(kA)	Rated dynamic current(kA)
		0.2	0.5	10P10	10P15	10P20
50-100	0.2/0.2/10P/10P 0.2/0.5/10P/10P 0.2/10P/10P/10P 0.5/10P/10P/10P 10P/10P/10P/10P	15	25	50	40	30	120lin	300lin
75-150
100-200
150-300							16	40
200-400
300-600							20	50
400-800
500-1000							31.5	80
600-1200
750-1500		20	40	50	40	30	40	100
800-1600
								Three transformation ratio
Rated primary current(A)	Accuracy classes combination	Rated secondary output(VA)					1s thermal current(kA)	Rated dynamic current(kA)
		0.2	0.5	10P10	10P15	10P20
50-75-100	0.2/0.2/10P/10P 0.2/0.5/10P/10P 0.2/10P/10P/10P 0.5/10P/10P/10P 10P/10P/10P/10P	15	25	50	40	30	120lin	300lin
75-100-150
100-150-200
150-200-300							16	40
200-300-400
300-400-600							20	50
400-500-600
500-600-800							31.5	80
600-800-1000
800-1000-1200		20	40	50	40	30	40	100
1000-1200-1500
