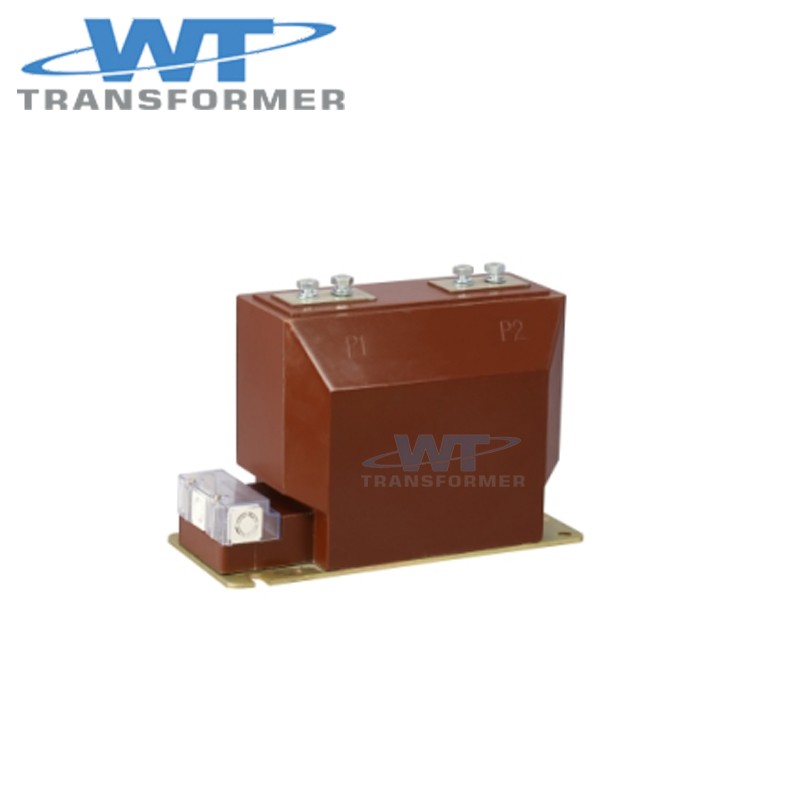

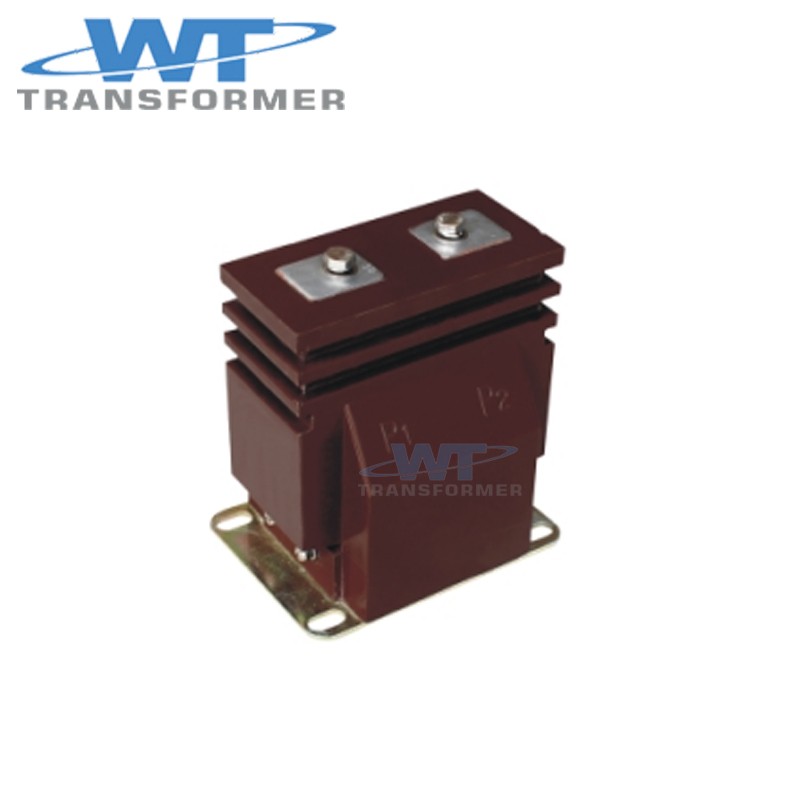

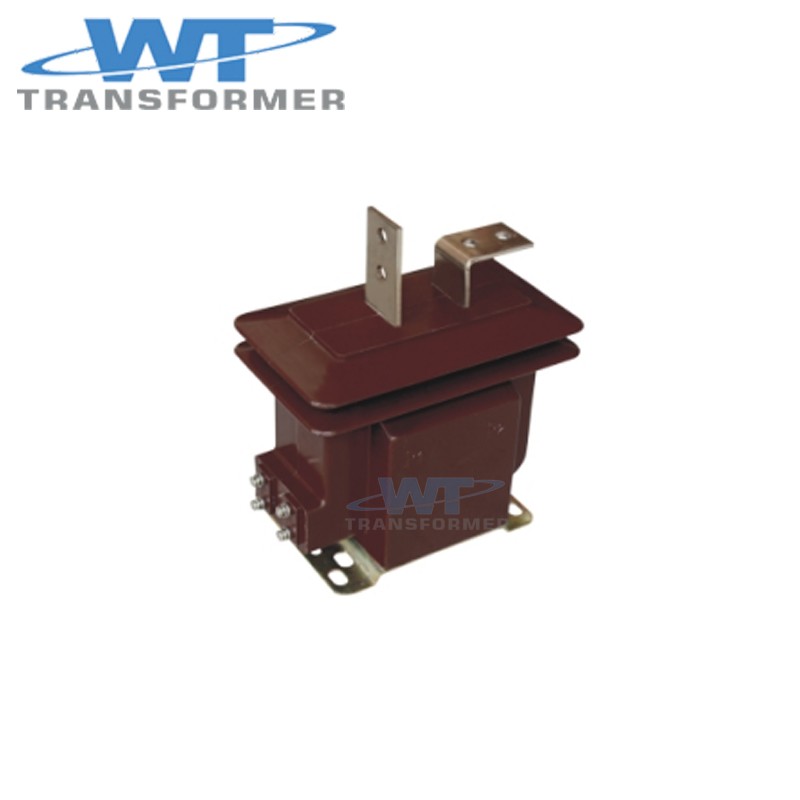

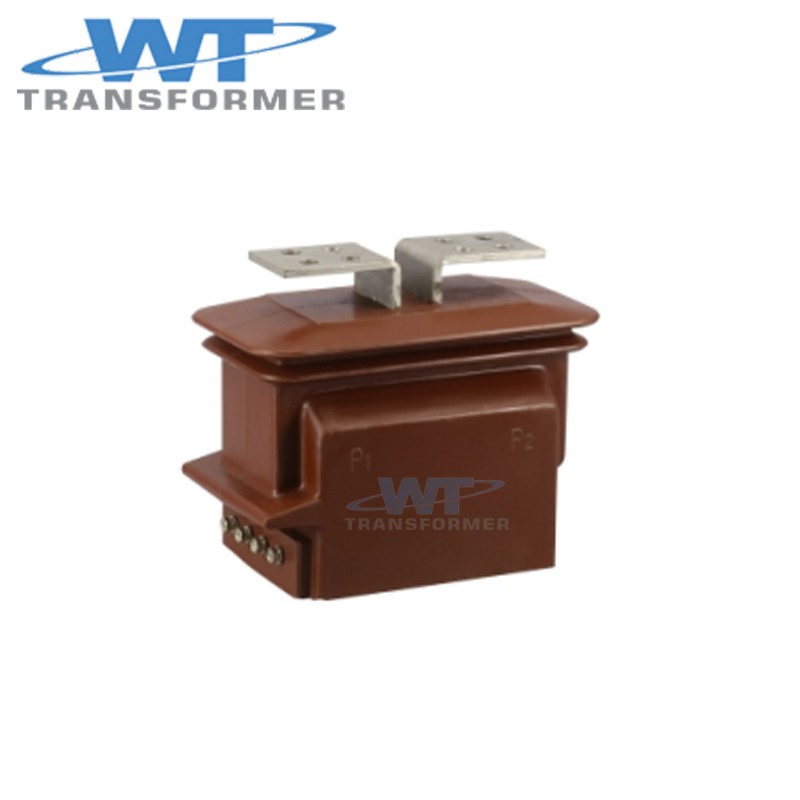

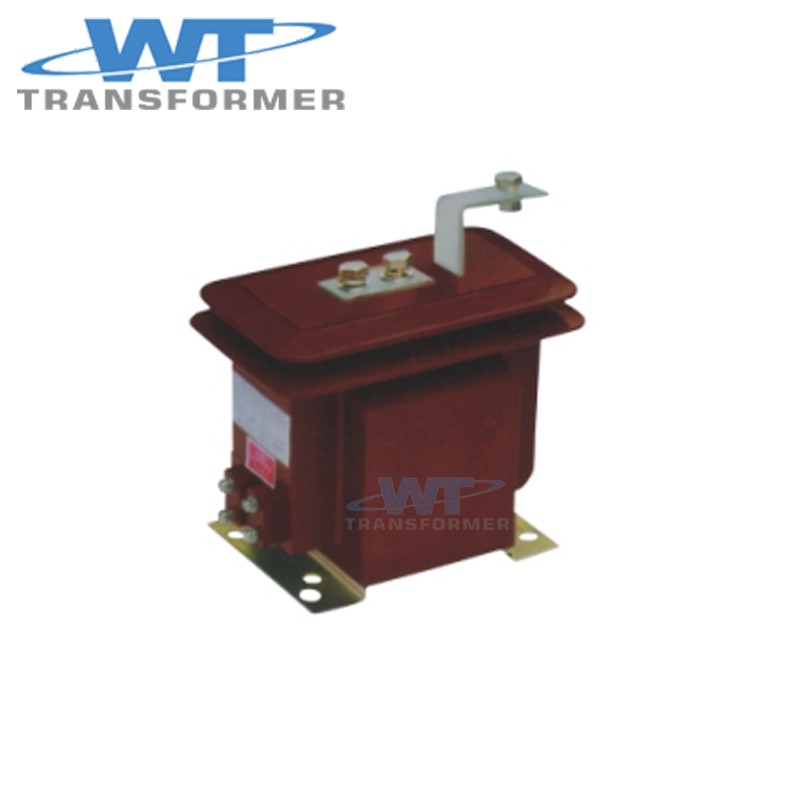

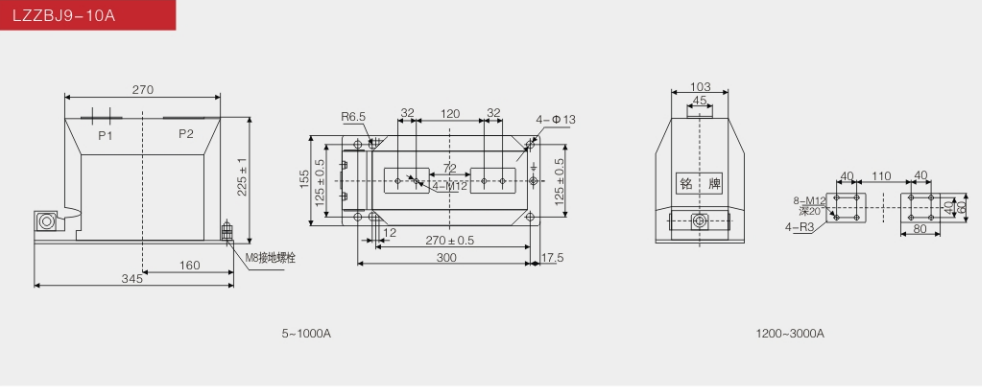

ANSI Current Transformer LZZBJ9-10A.B.C

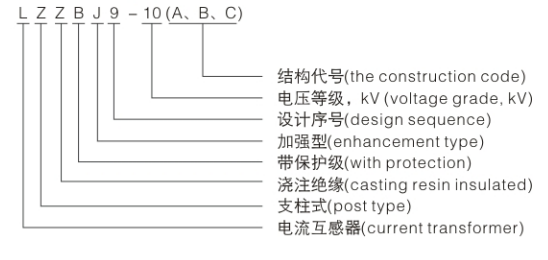

Type designation

Technical data

Rated primary current(A)	Accuracy class combination	Rated output(VA)	Short-time thermal current(kA/1s)	Rated dynamic current(kA)
5-100	0.2S/10P10	10/15 10/15/15 10/15 10/15	150lln	375lln
150-200	0.2S/0.5/10P10		21.5	54
300-400	0.5/10P10		31.5	80
500-600	0.2/10P10		45	112.5
800	0.2S/10P10 0.2S/0.5/10P10 0.5/10P10 0.2/10P10	10/15 10/10/15 10/15 10/15	63	130
1000 1200 1250	0.2S/10P10 0.2S/0.5/10P10 0.5/10P10 0.2/10P10	10/15 10/10/15 10/15 10/15	80	160
1000 1200 1250	0.2S/10P10 0.2S/0.5/10P10 0.5/10P10 0.2/10P10	10/15 10/10/15 10/15 10/15	80	160
1500 2000	0.2S/10P10 0.2S/0.5/10P10 0.5/10P10 0.2/10P10	10/15 10/10/15 10/15 10/15	100	160
1500 2000	0.2S/10P10 0.2S/0.5/10P10 0.5/10P10 0.2/10P10	10/15 10/10/15 10/15 10/15	100	160
