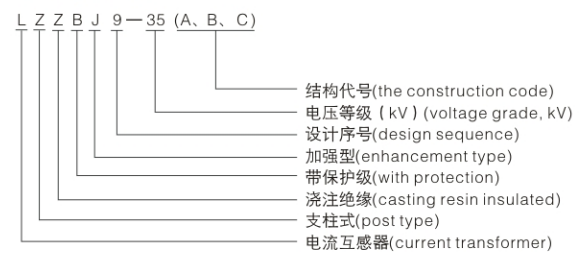

Type designation
Technical data
| Type | Rated primary current ( A) | Accuracy class combination | Rated output(VA) | Short-time thermal current (kA/1s) | Rated dynamic current ( ldyn ) |
| LZZBJ9-35A LZZBJ9-35B LZZBJ9-35C | 20~100 | 0.2S/5P10 0.5/5P10 0.2S/5P20 0.5/5P20 0.2S/0.5/5P10 0.2S/0.5/5P20 0.2S/5P10/5P20 0.5/5P10/5P20 0.5/10P10/10P10/10P10 0.2S/0.5/10P10/10P10 0.2S/10P10/10P10/10P10 | 10/15 15/15 10/15 15/15 | 150l1n | 375l1n |
| 150~200 | 31.5/1 | 80 | |||
| 300~500 | 31.5/2 | 80 | |||
| 600~1250 | 31.5/2 | ||||
| 2500~3150 | 10/15/15 10/15/15 10/15/15 15/15/15 15/15/15/15 10/15/15/15 10/15/15/15 | 40/2 | |||

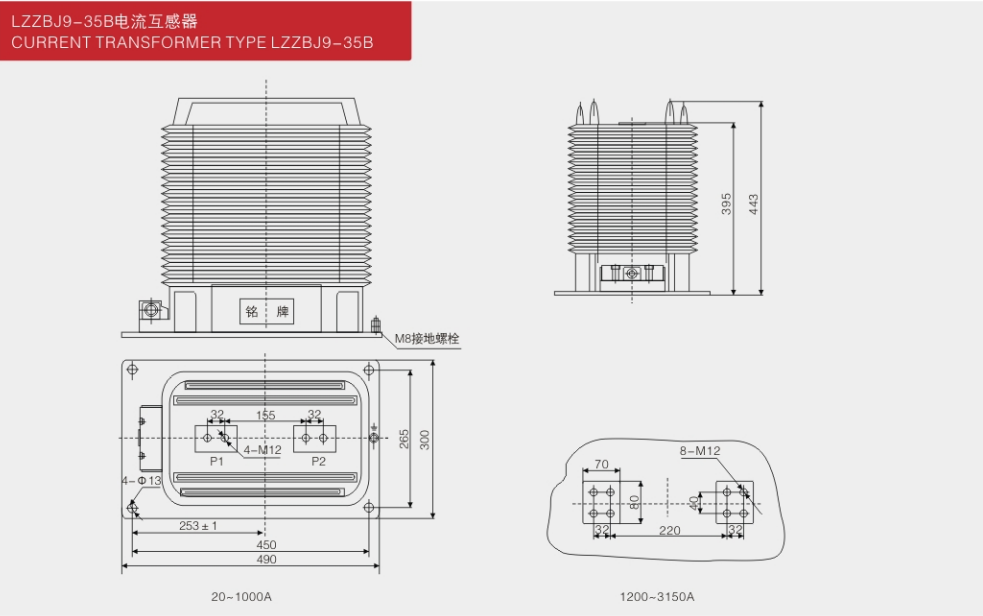

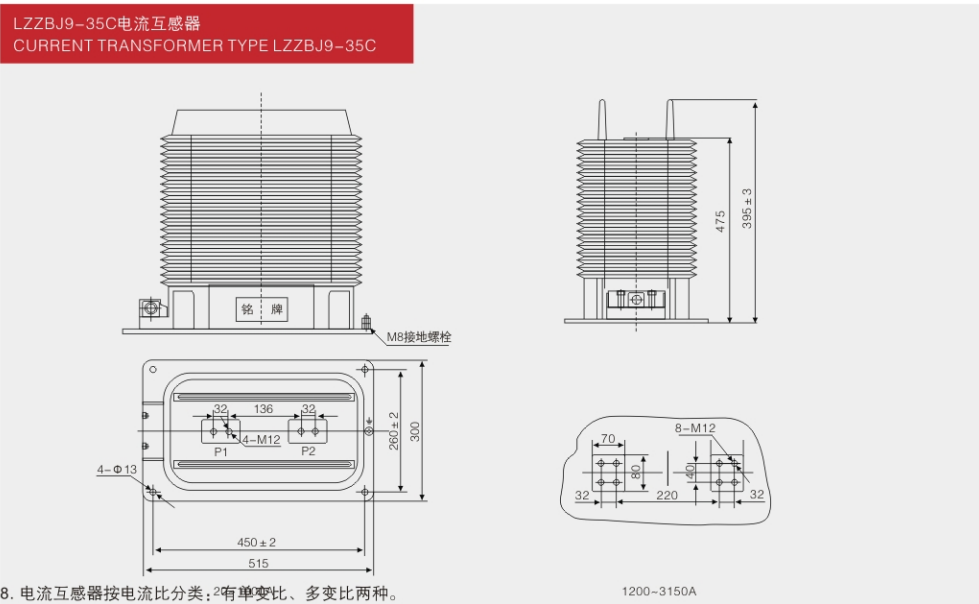

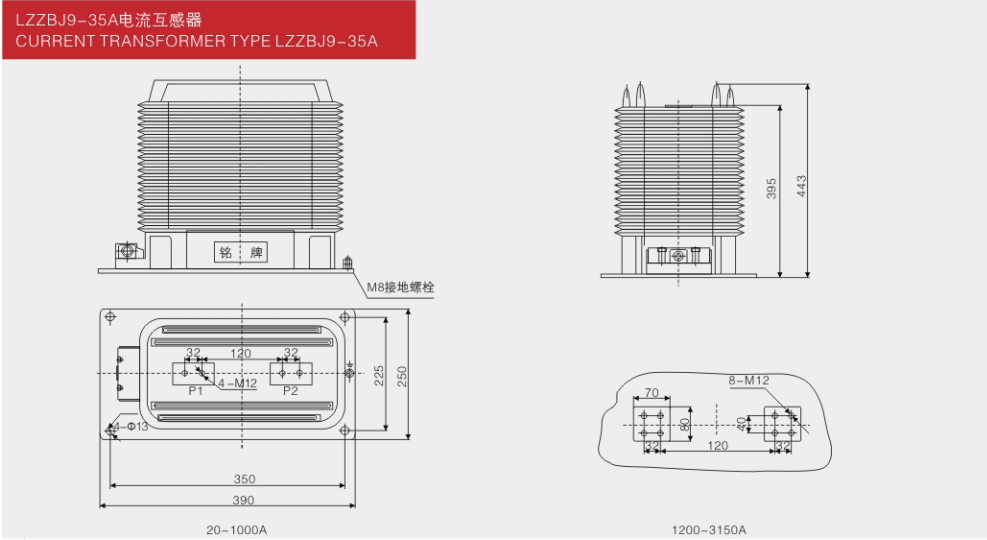

Drawing and dimention
