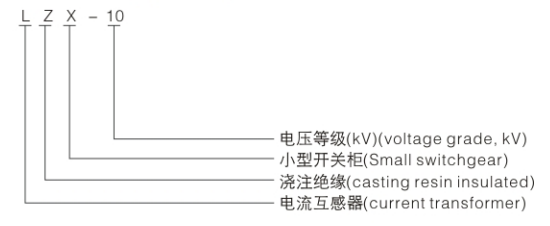

Type designation
Technical data
| Rated primary current(A) | Accuracy class combination | Rated output(VA) | Rated short time current(kA/1s) | Rated dynamic current(kA) | ||||
| 0.2S | 0.2 | 0.5 | 10P10 | 10P15 | ||||
| 5-100 | 0.2S/0.2S 0.2/0.2 0.2S/10P10 0.2/10P10 0.5/10P10 0.2/10P15 0.5/10P15 | 10 | 10 | 10 | 15 | 15 | 100l1n | 250I1n |
| 150 | 13.5 | 34 | ||||||
| 200 | 18 | 45 | ||||||
| 300 | 27 | 67.5 | ||||||
| 400 | 36 | 90 | ||||||
| 500 | 45 | 112.5 | ||||||
| 600 | ||||||||
| 750 | 20 | 63 | 130 | |||||
| 800~1000 | ||||||||
Drawing and dimention
