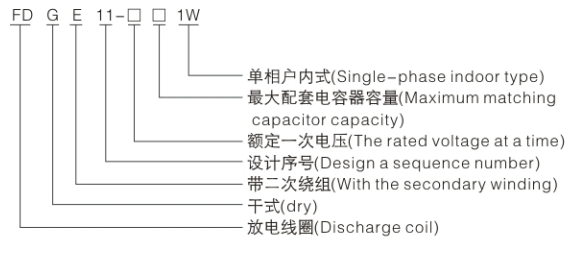

Type designation
Technical data
| Type | Rated voltage ratio(V) | Accuracy class and rated output(VA) | Discharge capacity (Mvar) | Rated insulation level(kV) | ||
| 0.5 | 1 | 6P | ||||
| FDGE8/6.6/√3(1.7-4)1W | 6.6/√3/0.1 6.6/√3/0.1/√3/0.1/3 | 50 | 100 | 100 | 1.7~4 | 7.2/32/60 |
| FDGE8/7.2/√3(1.7-4)1W | 7.2/√3/0.1 7.2/√3/0.1/√3/0.1/3 | |||||
| FDGE8/11/√3(1.7-4)1W | 11/√3/0.1 11/√3/0.1/√3/0.1/3 | 12/42/75 | ||||
| FDGE8/12/√3(1.7-4)1W | 12/√3/0.1 12/√3/0.1/√3/0.1/3 | |||||
| FDGE8/12.5/√3(1.7-4)1W | 12.5/√3/0.1 12.5/√3/0.1/√3/0.1/3 | |||||
Drawing and dimention
Note: such as the scope of technical parameters in the table above that, please determine again after consultation with our company.

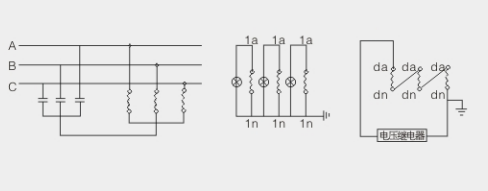

Principle diagram
